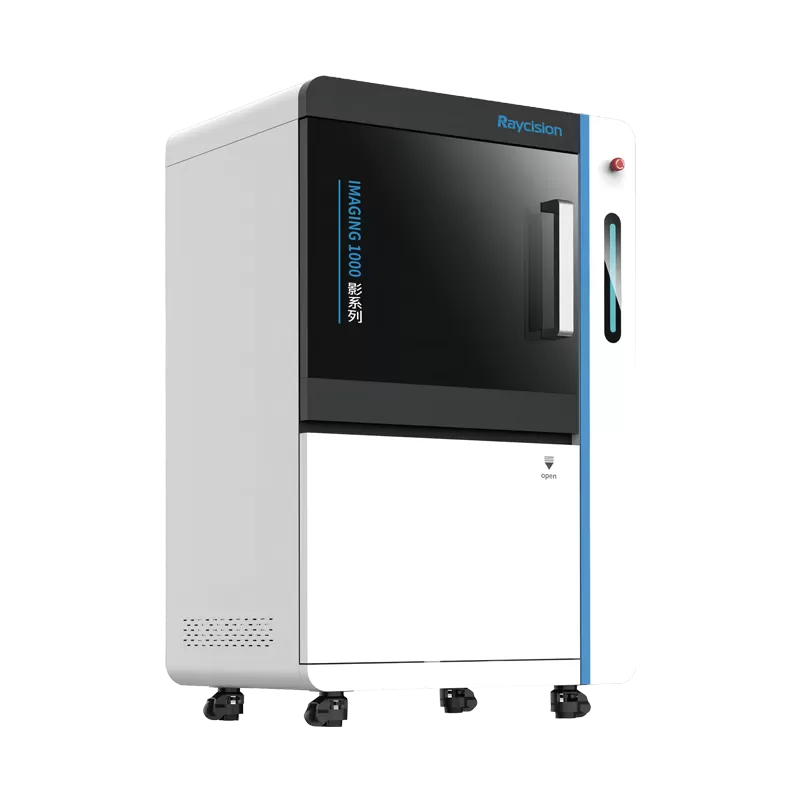

IMAGING 1000
Multimodality X-Ray & Optical Imaging System
A multimodal 3D in vivo imaging system integrating micro-CT and optical imaging, synergistically combining anatomical and functional information for high-resolution 3D visualization and precise quantification of signal depth, volume, size, and molecular activity.

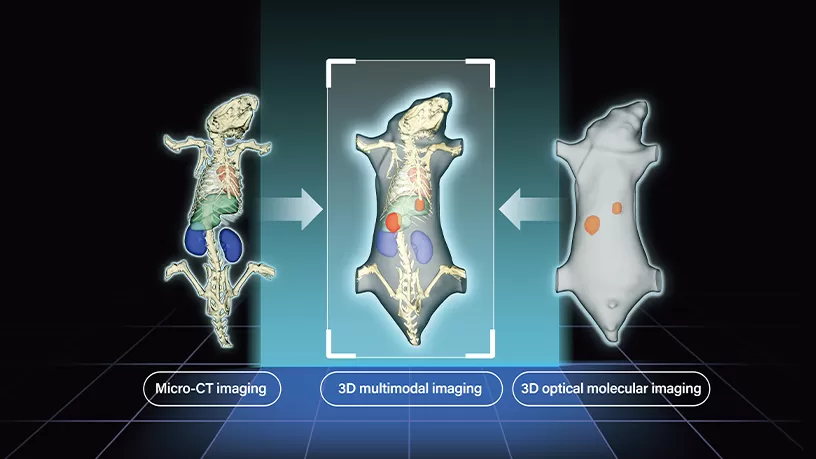

The seamless integration of Micro CT and 3D optical imaging simultaneously acquires anatomical structural information and target molecular activity data, achieving an imaging effect where "1+1" is far greater than 2.

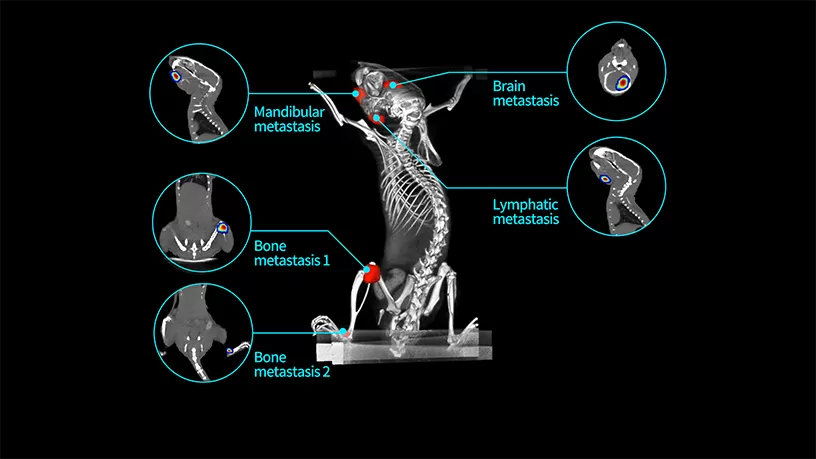

Utilizing advanced imaging algorithms, Micro CT achieves a resolution of 50 μm and enables real-time image reconstruction immediately after data acquisition. 3D optical reconstruction achieves sub-millimeter localization accuracy, enabling precise 3D imaging.

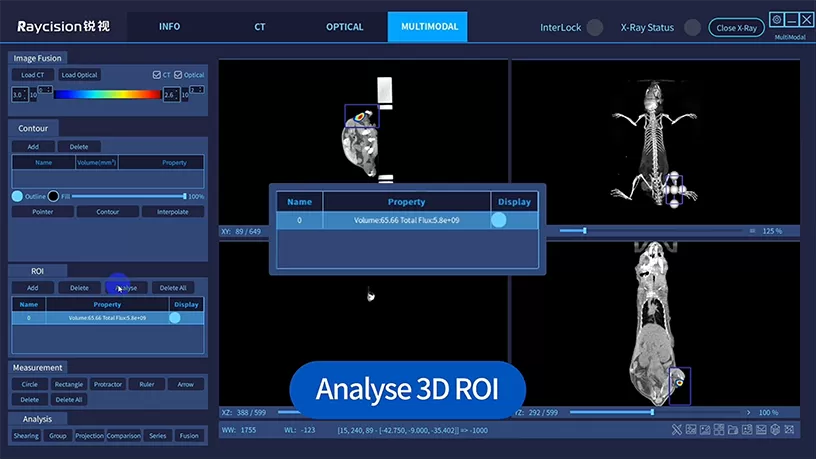

The software is equipped with functions such as automated ROI analysis and AI-based automatic organ segmentation, enhancing experimental efficiency.
| IMAGING 1000 | |
| Camera | Scientific-grade CCD |
| Min. operating temp. | -100°C |
| Quantum efficiency | ≥ 90% @500-700 nm |
| Dark current | ≤0.0001 e-/pixel/sec |
| Excitation light source (Quantity) | LED (12) |
| Number of excitation light filters | 12 |
| Number of emission light filters | 6 |
| Temperature-controlled sample stage | Include |
| Multi-probe imaging | Include |
| 3D localization accuracy | 0.2mm |
| 3D optical tomography | Include |
| X-ray imaging module | Include |
| CT imaging module | Include |
| Multimodal imaging module | Include |
