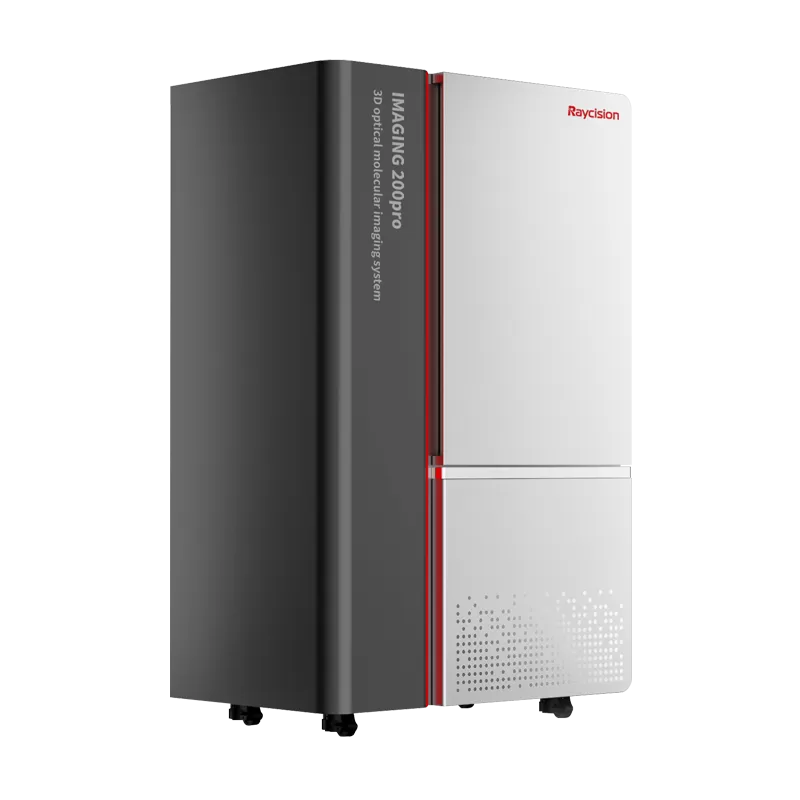

IMAGING 200pro
Full-Dimensional In Vivo Optical Molecular Imaging System
Combining high-throughput 2D imaging with true 3D optical tomography, the full-dimension optical imaging system enables rapid data acquisition, AI-powered organ reconstruction, and accurate quantitative analysis in a single platform.
It supports not only high-throughput (≥5 mice) 2D imaging but also multi-angle precision 3D optical imaging, providing a one-stop solution for various in vivo imaging requirements.

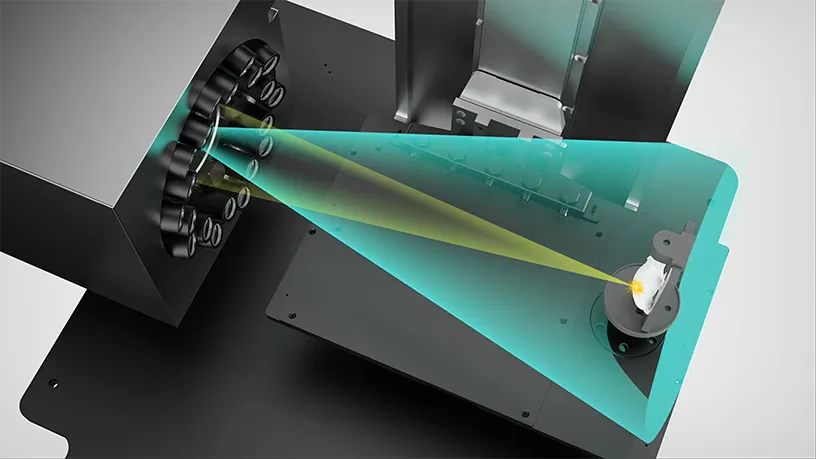

Equipped with 20 excitation and 18 emission high-performance filters, it supports user-customized wavelengths to meet full-spectrum imaging needs.
Features AI-assisted intelligent operating software that allows one-click switching between 2D/3D working states and different imaging fields of view, along with advanced functions such as AI-predicted organ distribution.
| IMAGING 200pro | |
| Camera | Scientific-grade CCD |
| Min. operating temp. | -100°C |
| Quantum efficiency | ≥ 90% @500-700 nm |
| Dark current | ≤0.0001 e-/pixel/sec |
| Excitation light source (Quantity) | LED (20) |
| Number of excitation light filters | 20 |
| Number of emission light filters | 18 |
| Temperature-controlled sample stage | Include |
| Multi-probe imaging | Include |
| 3D localization accuracy | 0.2mm |
| 3D optical tomography | Include |
| X-ray imaging module | Upgradable |
| CT imaging module | Upgradable |
| Multimodal imaging module | Upgradable |
Raycision Empowers Research and Industry with Imaging and Radiation Solutions Tailored to Your Exact Needs.
