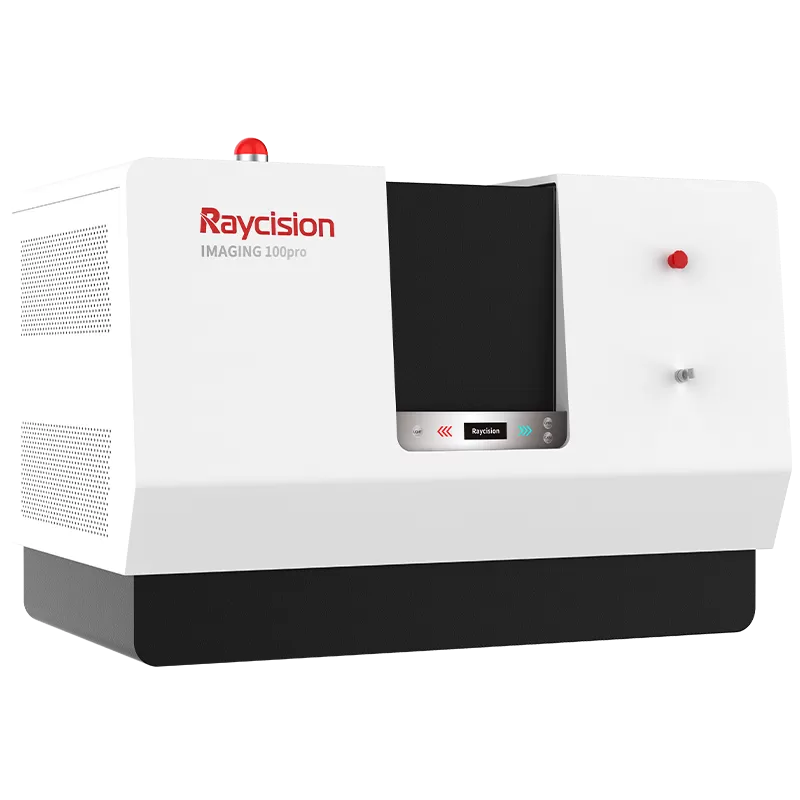

IMAGING 100pro
Ultra-High Resolution Micro-CT
Designed for flexibility and precision, this modular micro-CT system delivers high-resolution 3D imaging, AI-assisted analysis, and exceptional performance across diverse research applications.
IMAGING 100pro
Ultra-High Resolution Micro-CT
Designed for flexibility and precision, this modular micro-CT system delivers high-resolution 3D imaging, AI-assisted analysis, and exceptional performance across diverse research applications.

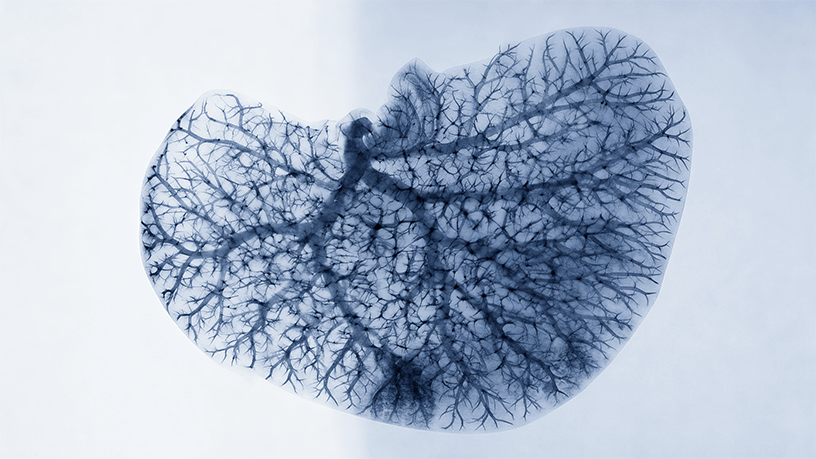

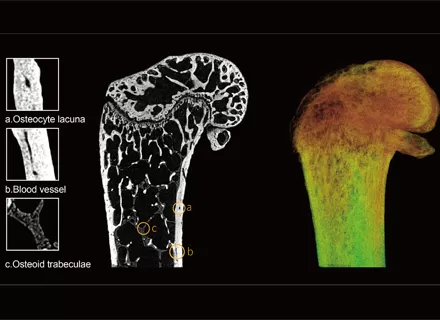

The IMAGING 100pro delivers exceptional spatial resolution up to 2 um voxel size, unveiling intricate microstructure - from trabecular bone and dental enamel to microvasculature and implant interfaces with stunning clarity.
Whole-body mouse CT data can be reconstructed in < 10 seconds with GPU-accelerated engine, delivering high-quality 3D images in real time.

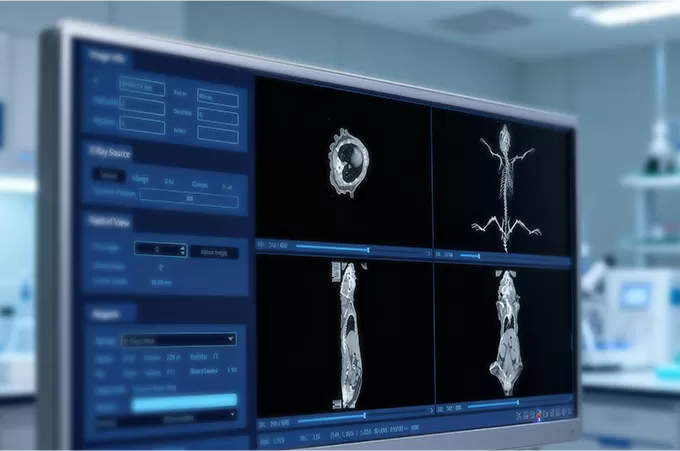

Comprehensive software has modules for bone, cardiopulmonary, and vascular analysis, with Al-powered tools delivering standardized, high-throughput workflows for faster research outcomes.
| IMAGING 100pro | |
| Max.tube voltage | 100 kV |
| Spatial resolution | 3.6 μm@10% MTF |
| Min. voxel size | 1 μm |
| Max. field of view | φ200×320（mm） |
| Gating | Included |
| Organ AI segmentation | Included |
| Bone analysis | Included |
| Lung analysis | Included |
| Adipose analysis | Included |
| Cardiac analysis | Included |
| Vascular analysis | Included |
| Radiation Safety | Self-shielding design, with a surface dose-rate of ＜0.2 μSv/h |
| Upgradable modules | Optical molecular imaging module, image-guided radiation therapy module |
Raycision Empowers Research and Industry with Imaging and Radiation Solutions Tailored to Your Exact Needs.
