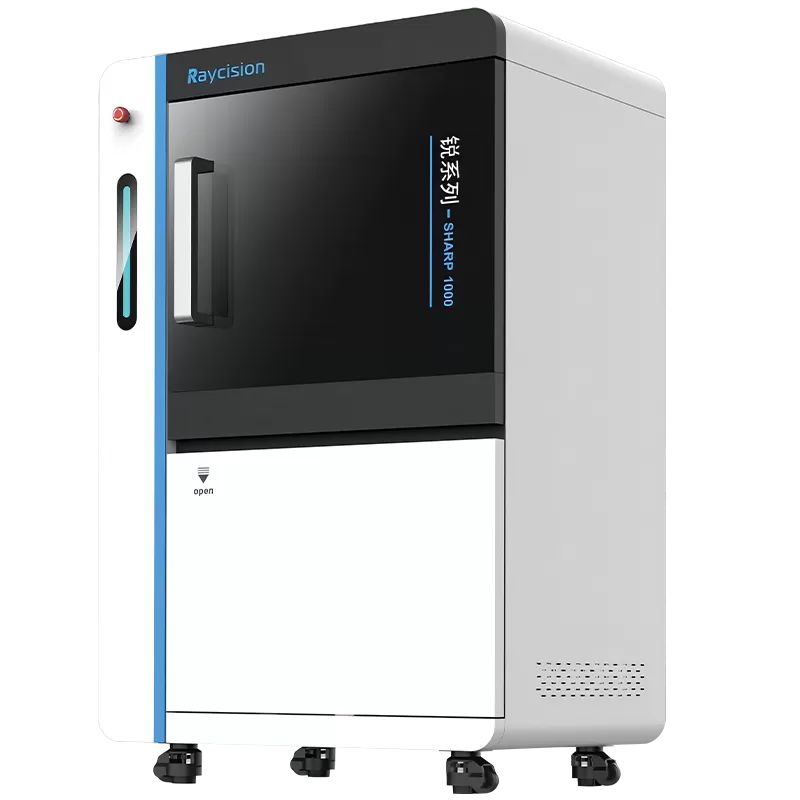

SHARP 1000
Multimodality Image-Guided Precision Radiation System
The most precise radiation platform integrates multiple imaging modalities, including CT bioluminescence and fluorescence tomography, and achieves all-in-one workflow from accurate tumor diagnosis, precise radiation delivery, to quantitative response evaluation.

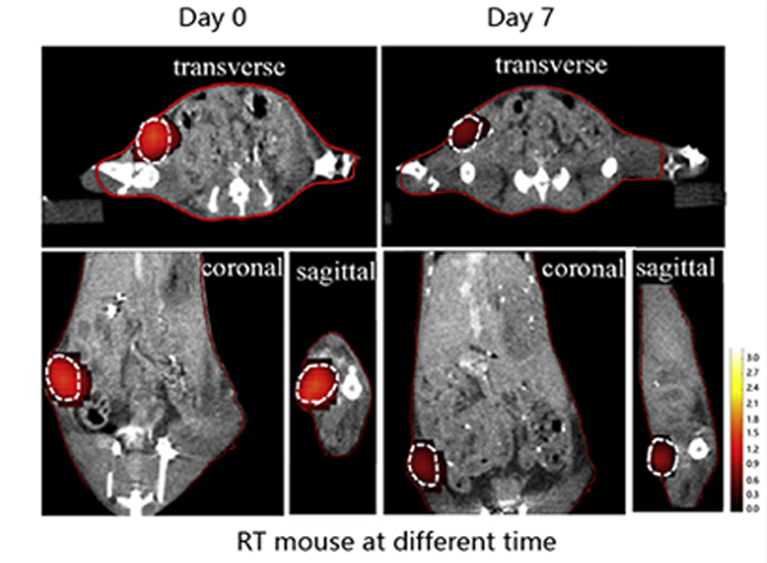

The on-board CT imaging allows for clear visualization of animal anatomy, and the molecular imaging (bioluminescence and fluorescence imaging) allows for functional tumor assessment at molecular level. All image modalities play complementary roles in tumor diagnosis and treatment response evaluation.

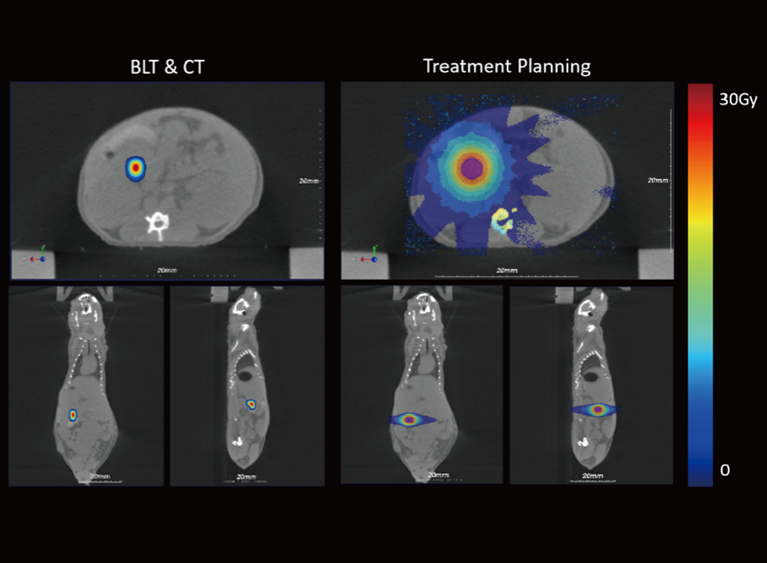

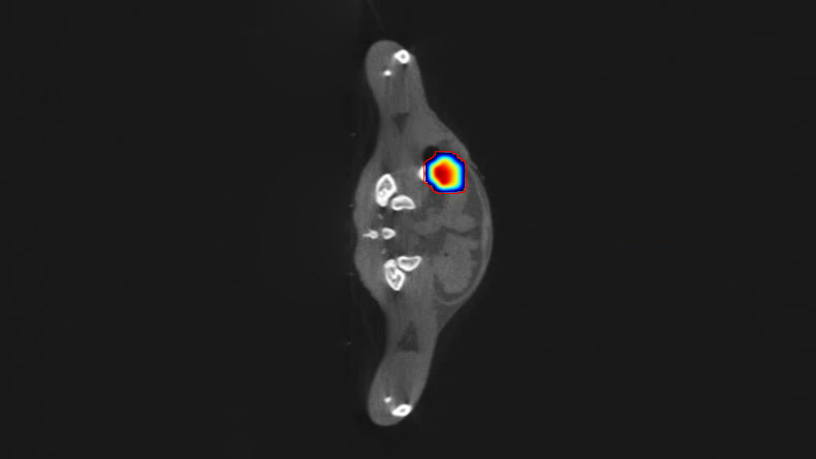

The program can automatically convert 3D optical molecular signals into radiotherapy target volumes, and thus reduces the target delineation uncertainty and accelerates the planning process.

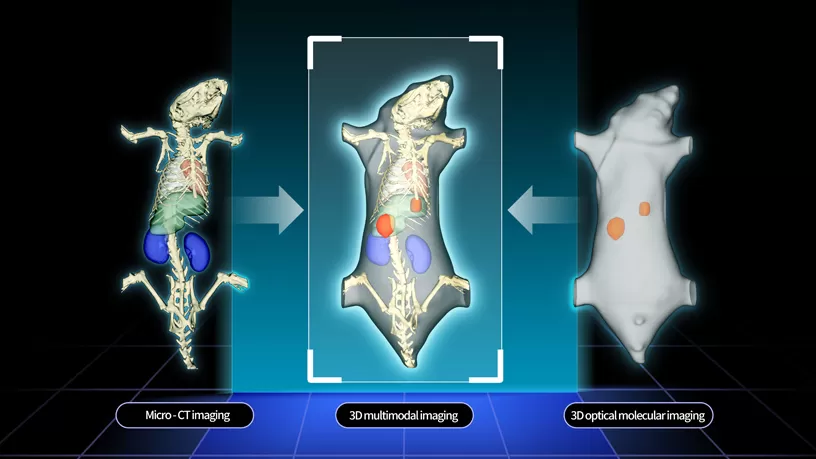

Integrates micro-CT anatomy and optical molecular imaging for precise tumor targeting in small animals, improving localization accuracy, irradiation precision, and experimental reliability.
| SHARP 1000 | |
| Radiation safety | ＜0.2 μSv/h |
| Certificate | FDA/CE |
| Max.tube voltage | 225 kV |
| Max. dose-rate | 100 Gy/min |
| Dose uniformity | ≥98% |
| X-ray image resolution | 50 μm |
| CT image resolution | 50 μm |
| 3D optical tomography | Included |
| Multimodal imaging | Included |
| Monte Carlo Dose Calculation | Included |

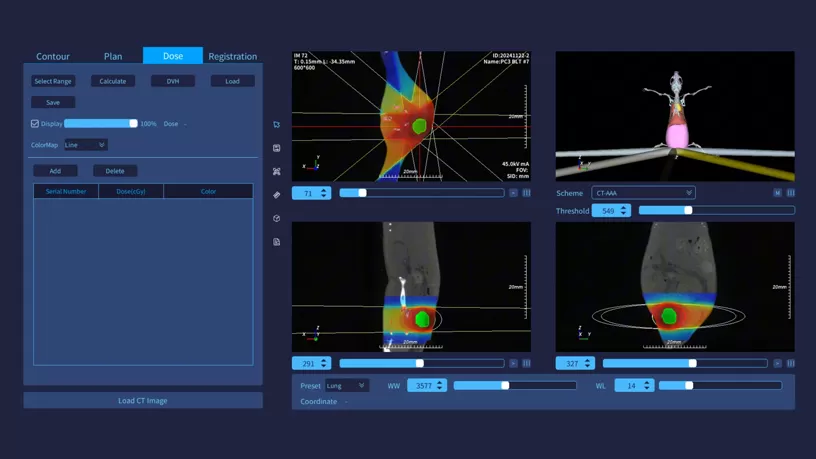

| Radiotherapy Treatment Planning System (TPS) | Included |
Raycision Empowers Research and Industry with Imaging and Radiation Solutions Tailored to Your Exact Needs.
