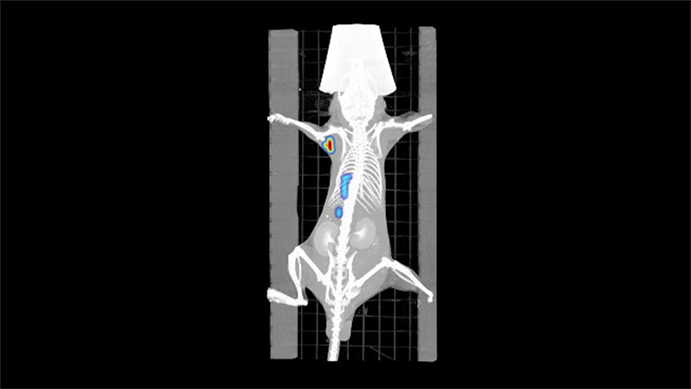

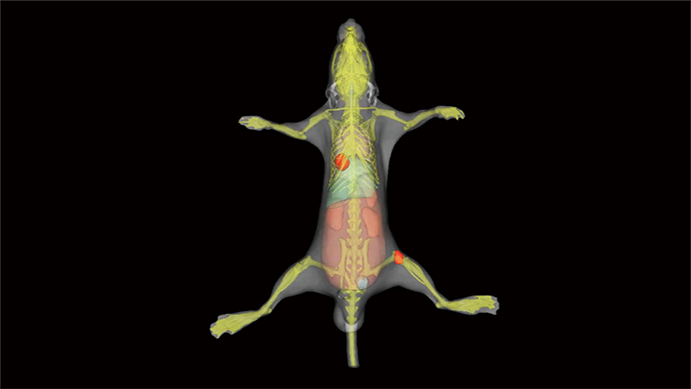

3D Liver Metastases Visualization & Organ Atlas
Cooled to -100°C for ultra-sensitive detection.
Cooled to -100°C for ultra-sensitive detection.
Reduces background autofluorescence for clearer signals.
Supports multimodal 2D and 3D imaging workflows.
Enables excitation across a wide range of fluorescent dyes.
Fully automated dark box eliminates ambient light interference.
One-click switching between multiple imaging modes.

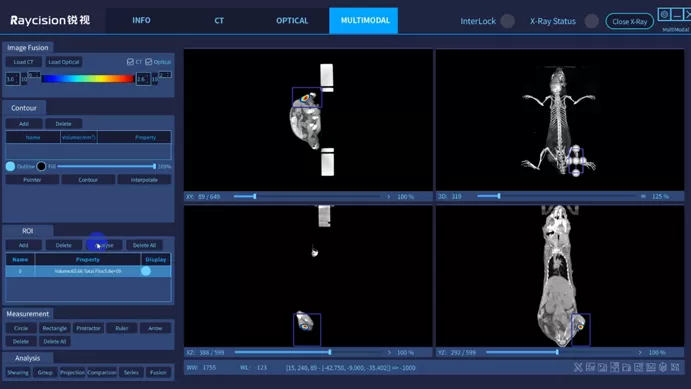

Multimodal data analysis: quantification of tumor volume and signal intensity

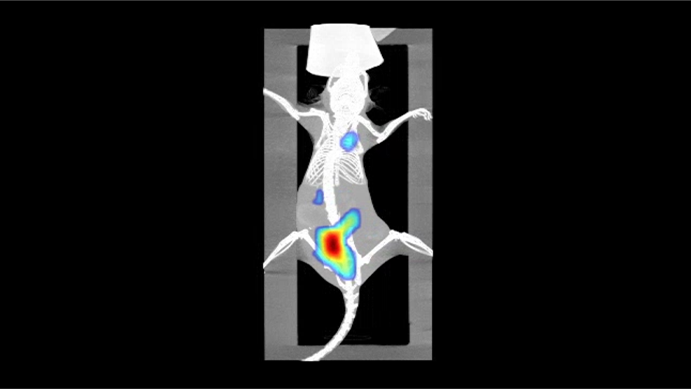

Metastasis detection in a mouse model of breast cancer and lung cancer.
| IMAGING 200 | IMAGING 200pro | IMAGING 1000 | |
| Camera | Scientific-grade CCD | Scientific-grade CCD | Scientific-grade CCD |
| Min. operating temp. | -100°C | -100°C | -100°C |
| Quantum efficiency | ≥ 90% @500-700 nm | ≥ 90% @500-700 nm | ≥ 90% @500-700 nm |
| Dark current | ≤0.0001 e-/pixel/sec | ≤0.0001 e-/pixel/sec | ≤0.0001 e-/pixel/sec |
| Excitation light source (Quantity) | LED (20) | LED (20) | LED (12) |
| Number of excitation light filters | 20 | 20 | 12 |
| Number of emission light filters | 18 | 18 | 6 |
| Temperature-controlled sample stage | Include | Include | Include |
| Multi-probe imaging | Include | Include | Include |
| 3D localization accuracy | / | 0.2 mm | 0.2 mm |
| 3D optical tomography | Upgradable | Include | Include |
| X-ray imaging module | Upgradable | Upgradable | Include |
| CT imaging module | Upgradable | Upgradable | Include |
| Multimodal imaging module | Upgradable | Upgradable | Include |
Raycision Empowers Research and Industry with Imaging and Radiation Solutions Tailored to Your Exact Needs.
